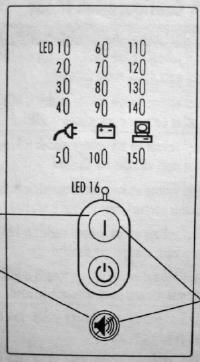

| LED | FUNCTION | LED16 | Descr |
| 1 |
120/230 Nom. |
On(default) |
Nominal voltage on low voltage models is 120V and on high voltage models is 230v;
all other nominal input voltages are disabled
|
| Off |
Nominal voltage on low voltage models is NOT 120V and on high volage models is NOT
230V; some other nominal input voltage is selected
|
| 2 |
110/220 Nom. |
On |
Nominal voltage on low voltage models is 110V and on high voltage models is 220v;
all other nominal input voltages are disabled
|
| Off(Default) |
Nominal voltage on low voltage models is NOT 110V and on high volage models is NOT
220V; some other nominal input voltage is selected
|
| 3 |
127/240 Nom. |
On |
Nominal voltage on low voltage models is 127V and on high voltage models is 240v;
all other nominal input voltages are disabled
|
| Off(Default) |
Nominal voltage on low voltage models is NOT 127V and on high volage models is NOT
240V; some other nominal input voltage is selected
|
| 4 |
Extended Voltage |
On |
The UPS accepts an input voltage within -35% to +20% of the selected nominal
input voltage before switching to battery.
|
| Off(Default) |
The UPS accepts an input voltage withing -30% to +20% of the selected nominal
input voltage before switching to battery.
|
| 5 |
Wiring fault alarm |
On(default) |
Alarm sounds when the polarity of the input source is reversed or ground is
missing; have a qualified electrician repair input source.
|
| Off |
Alarm DOES NOT sound when the polarity of the input source is reversed or ground
is missing
|
| 6 |
Low Battery Alarm |
On(default) |
Alarm sounds 3 minutes before battery shutdown.
|
| Off |
Alarm sounds 5 minutes before battery shutdown.
|
| 7 |
Shutdown Delay |
On(default) |
5 second delay before unconditional shutdown after UPS receives signal from a
computer via Communications Port.
|
| Off |
180 second delay before unconditional shutdown after UPS receives signal from a computer
via Communication Port. When this LED is not enabled, the user can also create a
new delay time by reconfiguring the Communications Port. See Appendix C for more
information.
|
| 8 |
AC Input FAilure Alarm |
On(default) |
Alarm sounds when there is an AC input failure.
|
| >Off |
Alarm does not sound when there is an AC input failure.
|
| 9 |
Sleep Mode |
On(default) |
UPS shuts off power to load when the UPS is on battery power and load is not
drawing current. This feature saves battery power.
|
| Off |
UPS DOES NOT Shut off power to load when the UPS is on battery power and the load is
not drawing current.
|
| 10 |
100/208 Nom. |
On |
Nominal voltage on 100V models is 100V and on high voltage models is 208v;
all other nominal input voltages are disabled
|
| Off(Default) |
Nominal voltage on 100V models is NOT 100V and on high volage models is NOT
208V; some other nominal input voltage is selected
|
| 11-14 |
N/A |
N/A |
Reserved for future use (Future what? Huh? Firmware upgrade ???)
|
| 15 |
Reset config |
On(default) |
All factory-set defaults are active.
|
| Off |
One or more factory-set defaults have been changed
|
